Titanium Tube Fittings

Home > Titanium > Titanium Tube Fittings

Jassem Tube Fittings is a well-respected manufacturer and supplier based in Doha, Qatar, focusing on high-performance tube fitting solutions tailored for tough industrial settings. The titanium tube fittings from Jassem Tube Fittings are crafted to provide remarkable strength, lightweight performance, and excellent resistance to corrosion. Built to function reliably in harsh and high-temperature environments, these fittings comply with international quality and safety standards. Catering to sectors like oil and gas, chemical processing, marine, and power generation, Jassem Tube Fittings delivers titanium tube fittings that guarantee leak-free connections, extended service life, and top-notch operational efficiency.

Titanium Instrumentation Tube Fittings Supplier in Doha, Titanium Double Ferrule Tube Fittings Price List in Al Rayyan, Titanium Back Ferrule Manufacturer in Al Wakrah, Titanium Single Ferrule Fittings In Al Khor, Titanium Bulkhead Union, Titanium Ferrule Fittings Exporter in Al Rayyan, Titanium Instrumentation Fittings Manufacturer in Al Shahaniya, Titanium Compression Tube Fittings in Doha, Qatar.

Titanium tube fittings are made from commercially pure titanium or titanium alloys, often incorporating aluminum and vanadium to boost strength. These fittings feature precision-machined bodies, ferrules, nuts, and either threaded or welded ends. Thanks to titanium’s impressive strength-to-weight ratio and its natural oxide layer, these fittings offer outstanding resistance to corrosion, erosion, and fatigue. The mechanical design ensures a secure grip on the tubing, even distribution of stress, and resistance to vibrations. Advanced machining and finishing techniques guarantee precise dimensions and dependable sealing under high pressure and temperature conditions.

Titanium Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Titanium Tube Fittings Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Titanium Tube Fittings	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–

Titanium Tube Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Tube Fittings	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

Top Titanium Tube Fittings Manufacturing Company in Doha

At Jassem Tube Fittings, we are the largest supplier, manufacturer, and exporter of Titanium Tube Fittings in Doha, Qatar. Our advanced manufacturing facilities, strategically located in the Qatar, allow us to provide high-quality solutions tailored to your specific requirements. With a substantial inventory of over 16,000 tons of top-grade stainless steel materials, we are well-equipped to meet your needs promptly. Our commitment to excellence and efficiency ensures that we consistently maintain available stock to support your demands.

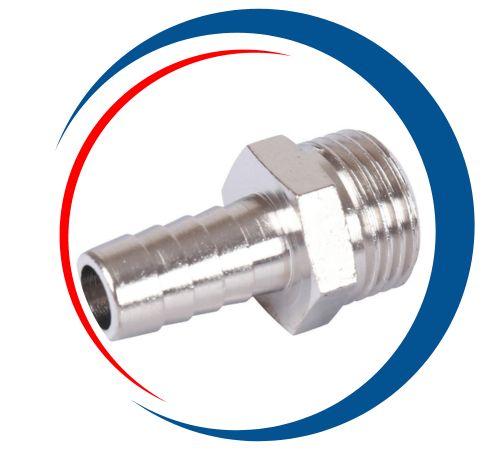

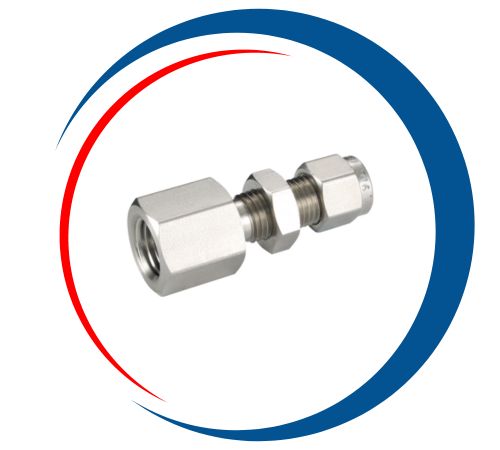

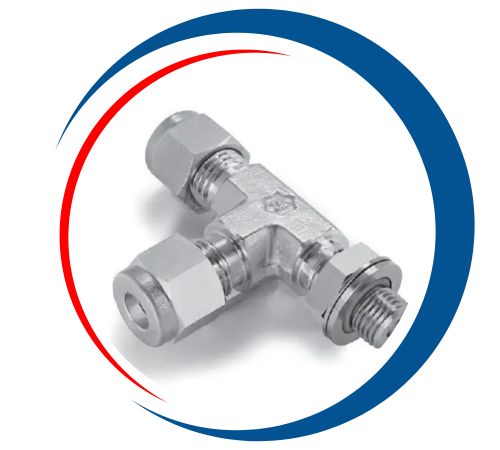

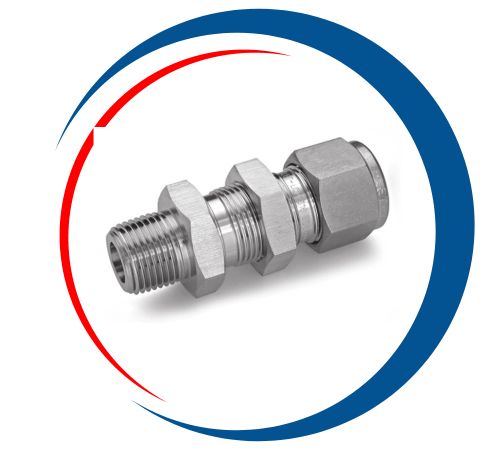

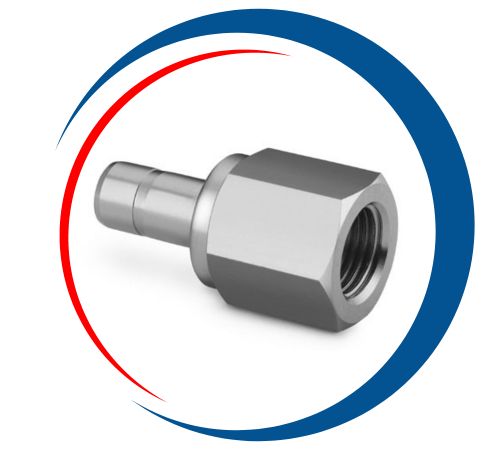

Types of Titanium Tube Fittings

Titanium Tube Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Titanium Tube Fittings	3.7035	R50400

Titanium Bulkhead Union, Titanium Alloy Tube To Union, Titanium Instrumentation Tube Fittings Price in Doha, Titanium Male Branch Tee Supplier in Al Rayyan, Titanium Bulk Head Female Connector Manufacturer in Al Wakrah, Titanium Single Ferrule Tube Fittings Price in Al Khor, Titanium Male Run Tee Supplier And Manufacturer in Al Shahaniya, Titanium Male Elbow In Doha, Qatar.

Largest Manufacturer and Supplier of Titanium Tube Fittings in Doha, Qatar

At Jassem Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Titanium Tube Fittings in Doha, Qatar. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Qatar, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Titanium Tube Fittings Uses

Titanium tube fittings find extensive use in industries that demand exceptional corrosion resistance and durability. They are perfect for offshore oil and gas platforms, chemical and petrochemical plants, and desalination facilities that face exposure to seawater and harsh chemicals. In marine and aerospace sectors, titanium fittings are prized for their lightweight nature and high strength. Power plants and heat exchanger systems rely on them for high-temperature and high-pressure applications, ensuring reliable performance in challenging conditions.
