Stainless Steel Hydraulic Fittings

Home > Stainless Steel > Stainless Steel Hydraulic Fittings

Based in Doha, Qatar, Jassem Tube Fittings stands out as a top manufacturer and supplier of high-performance Stainless Steel Hydraulic Fittings, tailored for tough industrial and hydraulic systems. Renowned for their precision engineering and rigorous quality control, the company delivers dependable solutions that can handle high pressure, vibrations, and extreme operating conditions. Their Stainless Steel Hydraulic Fittings guarantee secure, leak-free connections and a long lifespan. Produced in line with international standards, these fittings facilitate efficient fluid transfer and ensure system safety. With a strong commitment to excellence and customer satisfaction, Jassem Tube Fittings caters to key industries throughout the Middle East with robust and reliable hydraulic fitting solutions.

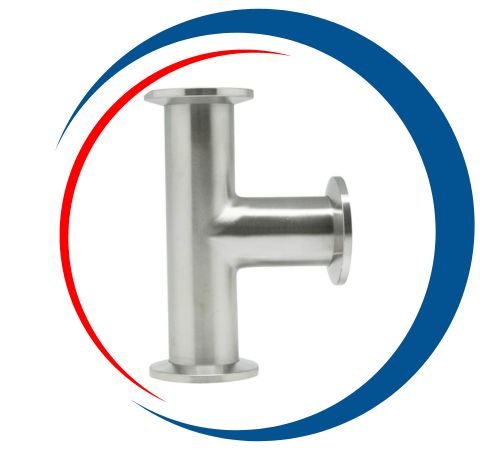

SS Equal Hydraulic Tee Fittings Manufacturer in Al Shahaniya, Stainless Steel Hydraulic Equal Elbow Fittings Exporter in Al Rayyan, Stainless Steel Hydraulic Equal Cross Hydraulic Fittings in Doha, Qatar, SS Hydraulic Female Stud Coupling Manufacturer in Al Wakrah, Stainless Steel Hydraulic Straight Coupling in Al Khor, Stainless Steel Hydraulic Tube Fittings Supplier in Doha, Stainless Steel Hydraulic Male Stud Coupling Price List in Al Rayyan

Stainless Steel Hydraulic Fittings are typically crafted from high-quality stainless steel grades like SS304, SS316, and SS316L. Their makeup features iron and chromium for corrosion resistance, nickel for added strength and toughness, and molybdenum to boost resistance against pitting and chemical damage. On the mechanical side, these fittings boast impressive tensile and yield strength, outstanding fatigue resistance, and the capability to endure high working pressures. They also maintain their shape and sealing integrity during pressure surges, temperature changes, and constant vibrations in hydraulic systems.

Stainless Steel Hydraulic Fittings Specifications

DESIGN STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , SS 310, SS 347
MATERIAL
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
CONNECTIONS	WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE	FORGED, BAR STOCK
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	(-60C TO 400C)

APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182

Stainless Steel Hydraulic Fittings Chemical Composition

Type	Grade		ASTM A240 Chemical Composition
Type	ASTM(A240M)	Others(JIS)	C	Si	Mn	P	S	Ni	Cr	Mo	Others
Stainless Steels	304	SUS304	≤0.07	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	17.5/19.5	―	N≤0.10
	304H		0.04/0.10	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	18.0/20.0	―
	304L	SUS304L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	8.0/12.0	17.5/19.5	―	N≤0.10
	304N	SUS304N1	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	8.0/10.5	18.0/20.0	―	N:0.10/0.16
	304LN	SUS304LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	8.0/12.0	18.0/20.0	―	N:0.10/0.16
	309S	SUS309S	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	12.0/15.0	22.0/24.0	―
	310S	SUS310S	≤0.08	≤1.50	≤2.00	≤0.045	≤0.030	19.0/22.0	24.0/26.0	―
	316	SUS316	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N≤0.10
	316L	SUS316L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N≤0.10
	316H		0.04/0.10	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00
	316LN	SUS316LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	10.0/14.0	16.0/18.0	2.00/3.00	N:0.10/0.16
	317L	SUS317L	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	11.0/15.0	18.0/20.0	3.0/4.0	N≤0.10
	317LN	SUS317LN	≤0.030	≤0.75	≤2.00	≤0.045	≤0.030	11.0/15.0	18.0/20.0	3.0/4.0	N:0.10/0.22
	321	SUS321	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	9.0/12.0	17.0/19.0	―	N≤0.10Ti:5ʷʢC+Nʣ/0.70
	347	SUS347	≤0.08	≤0.75	≤2.00	≤0.045	≤0.030	9.0/13.0	17.0/19.0	―	Nb:10ʷC/1.00
	904L	SUS890L	≤0.020	≤1.00	≤2.00	≤0.045	≤0.035	23.0/28.0	19.0/23.0	4.00/5.00	N≤0.10Cu:1.0/2.0
	S31254		≤0.020	≤0.80	≤1.00	≤0.030	≤0.010	17.5/18.5	19.5/20.5	6.0/6.5	N:0.18/0.25Cu:0.50/1.00
		SUS317J2	≤0.06	≤1.50	≤2.00	≤0.045	≤0.030	12.00/16.00	23.00/26.00	0.50/1.20	N:0.25/0.40

Stainless Steel Hydraulic Fittings Mechanical Properties

Type	Mechanical Properties for Stainless Steel Plates
	ASTM(A240M)	Others(JIS)	Tensile Properties			Hardness
	ASTM(A240M)	Others(JIS)	Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)	HBW	HRBW
AusteniticSteels	304	SUS304	≥205	≥515	≥40	≤201	≤92
	304H		≥205	≥515	≥40	≤201	≤92
	304L	SUS304L	≥170	≥485	≥40	≤201	≤92
	304N	SUS304N1	≥240	≥550	≥30	≤217	≤95
	304LN	SUS304LN	≥205	≥515	≥40	≤217	≤95
	309S	SUS309S	≥205	≥515	≥40	≤217	≤95
	310S	SUS310S	≥205	≥515	≥40	≤217	≤95
	316	SUS316	≥205	≥515	≥40	≤217	≤95
	316L	SUS316L	≥170	≥485	≥40	≤217	≤95
	316H		≥205	≥515	≥40	≤217	≤95
	316LN	SUS316LN	≥205	≥515	≥40	≤217	≤95
	317L	SUS317L	≥205	≥515	≥40	≤217	≤95
	317LN	SUS317LN	≥240	≥550	≥40	≤217	≤95
	321	SUS321	≥205	≥515	≥40	≤217	≤95
	347	SUS347	≥205	≥515	≥40	≤201	≤92
	N08904/904L	SUS890L	≥220	≥490	≥35	≤196	≤90
	S31254		≥310	≥655	≥35	≤223	≤96
		SUS317J2	≥345	≥690	≥40	≤250	≤100

Top Stainless Steel Hydraulic Fittings Manufacturing Company in Doha

At Jassem Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Hydraulic Fittings in Doha, Qatar. Our advanced manufacturing facilities, strategically positioned in the Qatar, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel Hydraulic Fittings

SS Hydraulic Straight Coupling in Doha, Qatar, Hydraulic Stainless Steel Bulkhead Union Price in Doha, SS Hydraulic Banjo Elbow Supplier in Al Rayyan, Hydraulic Stainless Steel Swivel Fittings Manufacturer in Al Wakrah, SS Hydraulic Male Stud Coupling Price in Al Khor, SS Equal Cross Hydraulic Fittings Tube Fittings Supplier And Manufacturer in Al Shahaniya

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Stainless Steel Hydraulic Fittings in Doha, Qatar

Jassem Tube Fittings is a leading supplier and stockist of premium Stainless Steel Hydraulic Fittings in Doha, Qatar. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel Hydraulic Fittings Uses

Stainless Steel Hydraulic Fittings find extensive use in hydraulic systems where reliability, strength, and corrosion resistance are paramount. They are commonly employed in oil and gas operations, construction machinery, marine systems, power generation, and heavy equipment. These fittings play a crucial role in connecting hoses, tubes, and pipes that transport hydraulic fluids under high pressure. Additionally, they are utilized in chemical processing, ensuring safe and efficient operation in various demanding environments.
