Stainless Steel Condensate Pots

Home > Stainless Steel > Stainless Steel Condensate Pots

Jassem Tube Fittings, located in Doha, Qatar, stands out as a top manufacturer and supplier of premium industrial piping solutions, including their renowned Stainless Steel Condensate Pots. Known for their precision engineering, durability, and reliability, the company caters to a diverse array of industries with innovative products aimed at enhancing system performance. These Stainless Steel Condensate Pots are expertly designed to efficiently gather and eliminate condensate from steam and compressed air systems, ensuring smooth operations and safeguarding against system damage. With a strong focus on quality and customer satisfaction, Jassem Tube Fittings delivers robust, corrosion-resistant, and long-lasting solutions, making them a trusted partner throughout the Middle East.

Stainless Steel Type D Condensate Pot with Red Oxide Coated Manufacturer Doha, Stainless Steel Type E Condensate Pot with Zinc Plating Dealer Al Rayyan, SS Type F Condensate Pots Supplier Al Wakrah, 316 Stainless Steel Type D Condensate Pot Exporter In Al Khor, Stainless Steel Type E Condensate Pot with Galvanized Plating Sockets Manufacturer Al Shahaniya, Stainless Steel Type F Condensate Pots with 6 Ports Supplier Doha, Qatar.

Stainless Steel Condensate Pots are generally crafted from high-grade stainless steel alloys like SS304 or SS316, which provide outstanding corrosion resistance and durability. Their composition features iron, chromium, nickel, and trace elements that boost strength and resistance to high temperatures and chemical exposure. Mechanically, these pots showcase impressive tensile and yield strength, along with good impact resistance and structural integrity under pressure. Their sturdy design guarantees long-term reliability, effective condensate collection, and low maintenance needs, making them ideal for challenging industrial settings.

Stainless Steel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Top Stainless Steel Condensate Pots Manufacturing Company in Doha

At Jassem Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Condensate Pots in Doha, Qatar. Our advanced manufacturing facilities, strategically positioned in the Qatar, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

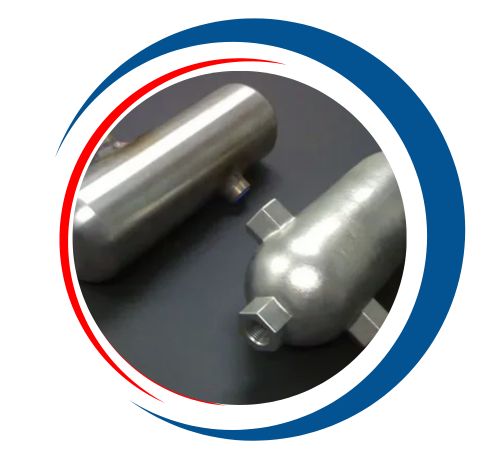

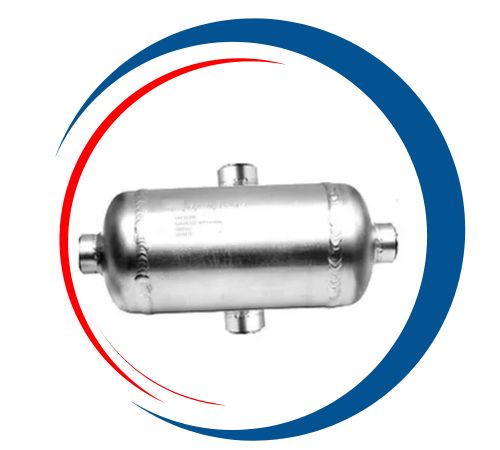

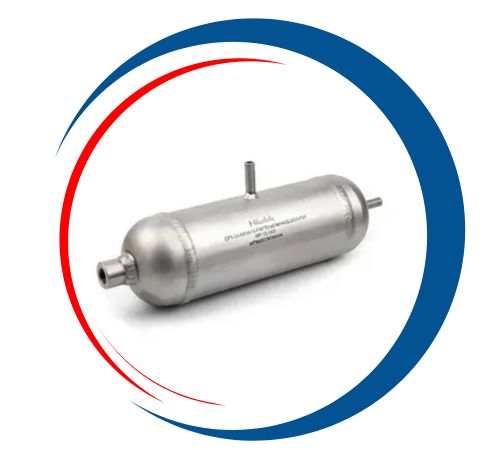

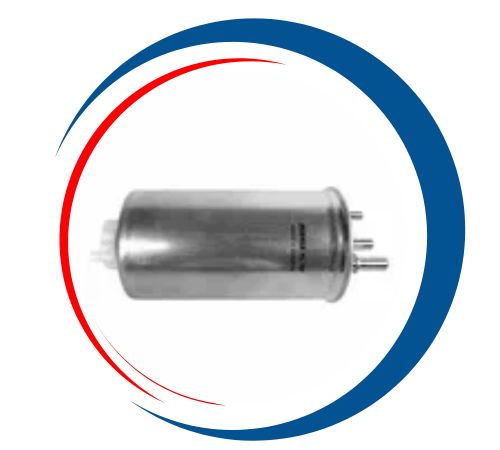

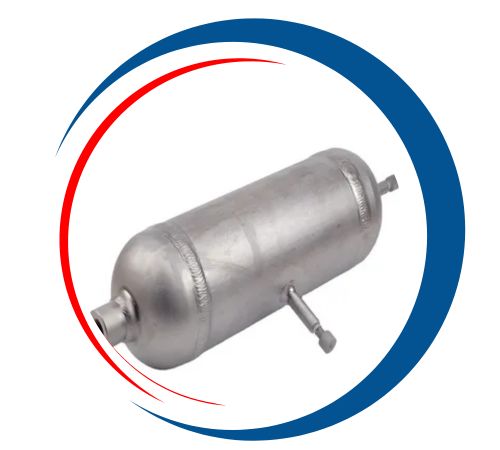

Types of Stainless Steel Condensate Pots

Sizing Of Stainless Steel Condensing Pot

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

SS Type D Condensate Pots Price in Doha, SS Type E Condensate Pots Manufacturer Supplier in Al Rayyan, Stainless Steel Type F Condensate Pot with Red Oxide Coated Manufacturer in Al Wakrah, Stainless Steel 316 Socket Weld Half Couplings Price in Al Khor, Stainless Steel Type D Condensate Pot with Galvanized Plating Supplier And Manufacturer in Al Shahaniya, Stainless Steel Type E Condensate Pots with 4 Ports Dealer In Al Wakrah, Stainless Steel Type F Condensate Pot with Galvanized Plating In Doha, Qatar.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Stainless Steel Condensate Pots Supplier in Doha, Qatar

Jassem Tube Fittings is a leading supplier and stockist of premium Stainless Steel Condensate Pots in Doha, Qatar. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel Condensate Pots Uses

Stainless Steel Condensate Pots find extensive use in steam and compressed air systems across various sectors, including petrochemical, power generation, HVAC, and manufacturing. They play a crucial role in efficiently collecting and removing condensate, which helps prevent issues like water hammer, corrosion, and equipment damage. These pots are vital for maintaining system efficiency, safety, and longevity, particularly in high-temperature and high-pressure conditions. Additionally, they are utilized in piping networks where proper condensate management is essential for optimal performance and reliability.
