Jassem Tube Fittings has built a solid reputation as a reliable manufacturer and supplier of top-notch industrial fittings and valves in Doha, Qatar. They’re well-known for their precision engineering, durability, and adherence to international standards. One of their standout products, **Monel Hydraulic Fittings**, is crafted to offer exceptional corrosion resistance, impressive strength, and dependable performance in tough hydraulic systems. Using cutting-edge technology and rigorous quality control, these fittings guarantee leak-free connections, smooth fluid flow, and long-lasting reliability. Jassem Tube Fittings caters to various industries, including oil and gas, petrochemical, marine, chemical processing, and power generation, delivering robust solutions for critical high-pressure hydraulic needs.

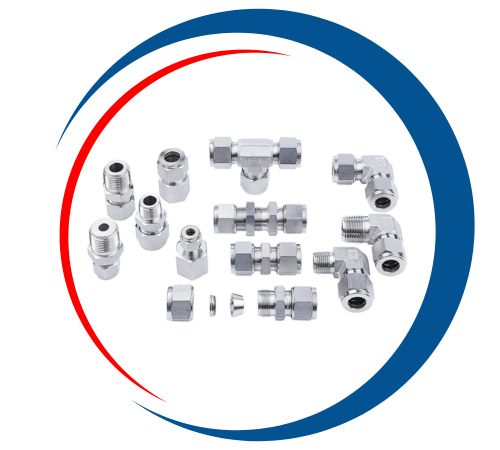

**Monel Hydraulic Fittings** are crafted from Monel, a nickel-copper alloy celebrated for its outstanding corrosion resistance, especially against seawater, acids, and alkalis. On the mechanical side, they boast high tensile strength, toughness, and stability even under high pressures and temperatures. The precision-engineered design guarantees leak-free connections, smooth operation, and impressive durability. With resistance to wear, oxidation, and chemical attacks, Monel Hydraulic Fittings ensure reliable performance in challenging environments. These characteristics make them perfect for high-pressure hydraulic systems that require both corrosion resistance and mechanical strength in demanding industrial and marine settings.
| DESIGN STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MONEL 400, MONEL K500 |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| BODY TYPE | FORGED, BAR STOCK |
| SURFACE | EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH |
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Ai% | Cu% | Nb/Cb Ta% | Ti% | Fe% | Sonstige Autres-Other % |
| Monel 400 | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| Monel 401 | 0.10 | – | – | – | 43.0 | – | – | – | 53.0 | – | – | 0.75 | Si 0.25; Mn 2.25 |
| Monel 404 | 0.15 | – | 52.0-57.0 | – | – | 0.05 | rest/bal | – | – | 0.50 | Mn 0.10; Si 0.10;S o.024 | ||
| Monel 502 | 0.10 | – | – | – | 63.0-17.0 | – | – | 2.5-3.5 | rest/bal | – | 0.50 | 2.0 | Mn 1.5;Si 0.5; S 0.010 |
| Monel K 500 | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| Monel R 405 | 0.15 | – | – | – | 66.0 | – | – | – | 31.0 | – | – | 1.2 | Mn 1.0; S 0.04 |
| Tensile strength, Ultimate | 550 Mpa |
| Tensile strength, Yield | 240 Mpa |
| Elongation at Break | 48% |
| Color/appearance | Gray [6] |
| Luster | Metallic [9] |
| Melting point | 1300 – 1350°C [1] |
| Density | 8.80X103 kg/m3 [2] |
| State of matter at room temperature (normal phase) | Solid [9] |
| Hardness | 110-150 HB [7] |
| Thermal Conductivity | 21.8 W/(m K) [1] |
| Resistivity | 54.7X10-8 ohm-m [2] |
| Tensile strength (annealed) | 550 MPa [2] |
| Specific heat capacity | 427 J/(kg*K) [2] |
| Modulus of elasticity | 179 GPa [2] |
|
STANDARD
|
WERKSTOFF NR.
|
UNS
|
JIS
|
BS
|
GOST
|
AFNOR
|
EN
|
|
Monel 400
|
2.4360
|
N04400
|
NW 4400
|
NA 13
|
МНЖМц 28-2,5-1,5
|
NU-30M
|
NiCu30Fe
|
|
Monel K500
|
2.4375
|
N05500
|
–
|
–
|
–
|
–
|
–
|
Contact us to get a quick quote for your requirement.
**Monel Hydraulic Fittings** find extensive use in high-pressure hydraulic systems across various industries that require durable and corrosion-resistant connections. They are frequently utilized in oil and gas operations, petrochemical plants, chemical processing facilities, marine environments, and power generation systems. These fittings facilitate reliable connections that can withstand the rigors of demanding applications, ensuring safety and efficiency in critical operations.
Please feel free to contact us if you need any further information or for enquiry.
