Monel 400 Needle Valve

Home >Monel >Monel 400 Needle Valve

Jassem Tube Fittings, located in Doha, Qatar, stands out as a leading manufacturer and supplier of top-notch Monel 400 Needle Valves. Renowned for their precision engineering and remarkable reliability, the company offers robust solutions for fluid and gas control across various industrial sectors. The Monel 400 Needle Valves from Jassem Tube Fittings are crafted to provide exceptional corrosion resistance, strength, and durability, even in the harshest conditions. By blending advanced manufacturing techniques with rigorous quality control, the company guarantees that each valve meets the highest standards. These needle valves are trusted for their long-lasting performance and low maintenance, making them perfect for critical applications in the chemical, marine, and oil and gas industries.

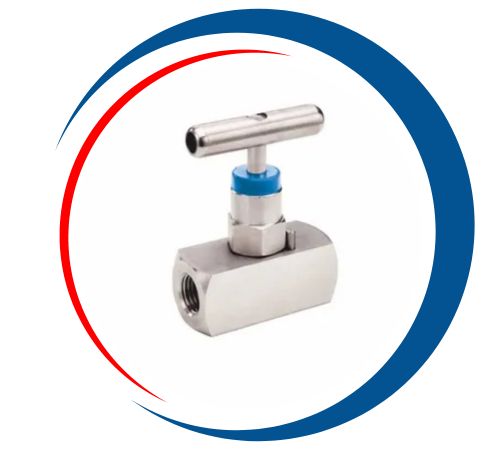

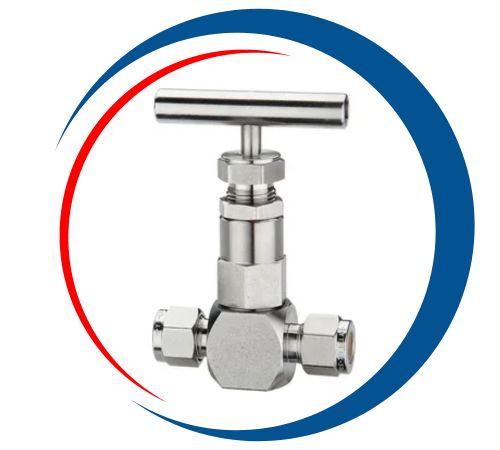

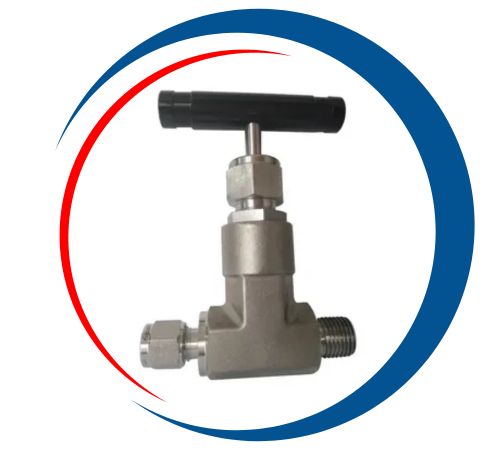

Monel 400 Bleed Needle Valves Supplier in Doha, UNS N04400 Needle Valve Price List in Al Rayyan, Alloy 400 Industrial Needle Valve Manufacturer in Al Wakrah, Monel 400 Gauge Valves in Al Khor, DIN 2.4360 Needle & Gauge Valves Exporter in Al Rayyan, Monel 400 Screwed End Needle Valve Manufacturer in Al Shahaniya, Monel 400 Hydraulic Needle Valve In Doha, Qatar.

Monel 400 Needle Valves are mainly made from a nickel-copper alloy, typically featuring over 63% nickel along with copper and small amounts of iron and manganese. This unique composition grants them outstanding resistance to corrosion, especially against seawater, acids, and alkalis. On the mechanical side, these valves showcase high tensile strength, toughness, and fatigue resistance while still being ductile enough for easy operation and installation. They can handle elevated temperatures and high pressures without any deformation or leakage. Precision machining guarantees accurate needle seating and smooth operation, while the alloy’s durability ensures a long service life and dependable performance in demanding industrial settings.

Monel 400 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, DK-LOK, HAMLET, OLIVER VALVES, HOKE
MATERIAL	MONEL 400

Monel 400 Needle Valve Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel 400	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Monel 400 Needle Valve Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel 400	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Top Monel 400 Needle Valve Manufacturing Company in Doha

At Jassem Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel 400 Needle Valve in Doha, Qatar. Our advanced manufacturing facilities, strategically positioned in the Qatar, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Monel 400 Needle Valve

Monel 400 Needle Valve Equivalent

STANDARD

WNR Material Number

UNS

JIS

GOST

AFNOR

Monel 400

2.4360

N04400

NW 4400

NA 13

МНЖМц 28-2,5-1,5

NU-30M

NiCu30Fe

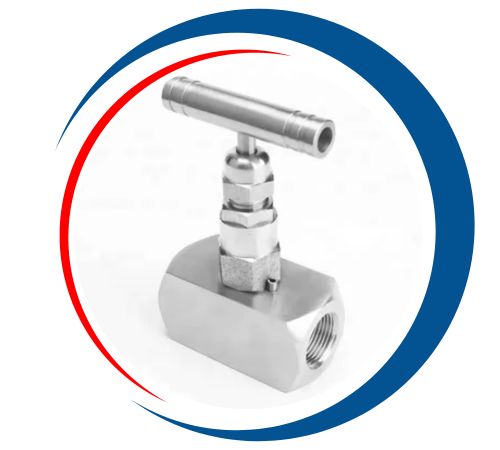

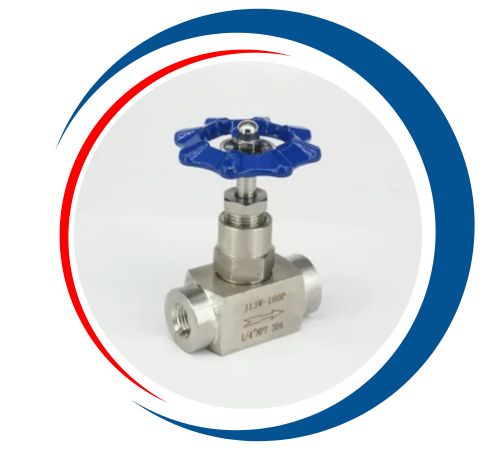

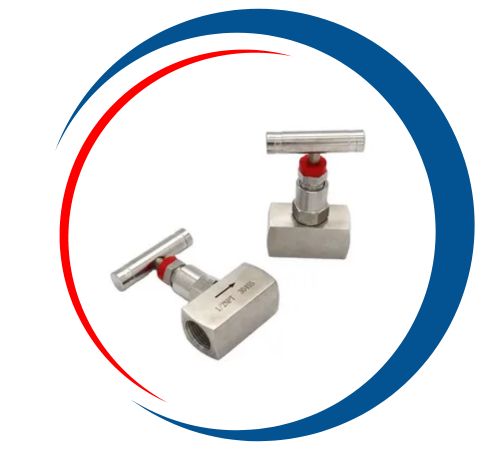

Monel 400 Screwed End Needle Valve Price in Doha, UNS N04400 Monel 400 Hydraulic Needle Valve Supplier in Al Rayyan, DIN 2.4360 400 Monel Parker Needle Valve Manufacturer in Al Wakrah, Monel 400 Gauge Vent Valves Price in Al Khor, Monel Alloy 400 Multiport Gauge Valves Supplier And Manufacturer in Al Shahaniya, Monel 400 Gauge Valve In Doha, Qatar.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Monel 400 Needle Valve Supplier in Doha, Qatar

Jassem Tube Fittings is a leading supplier and stockist of premium Monel 400 Needle Valve in Doha, Qatar. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel 400 Needle Valve Uses

Monel 400 Needle Valves find their place in industries where precise flow control, high strength, and corrosion resistance are crucial. They are perfect for applications in chemical processing, oil and gas, marine, desalination, and power generation. These valves excel at accurately regulating liquids and gases in pipelines, even under high-pressure and high-temperature conditions. Their resistance to corrosion and wear makes them a reliable choice for critical operations, ensuring that processes run smoothly and efficiently. Whether in a chemical plant or offshore platform, Monel 400 Needle Valves are essential for maintaining optimal performance and safety.
