Inconel 625 Tube Fittings

Home > Inconel > Inconel 625 Tube Fittings

Jassem Tube Fittings is a trusted manufacturer and supplier in Doha, Qatar, offering high-quality Inconel 625 Tube Fittings designed for reliable performance in extreme and corrosive operating environments. These fittings ensure leak-free connections, excellent pressure handling, and long service life in demanding process and instrumentation systems. Manufactured with precision engineering and strict quality standards, Jassem Tube Fittings delivers fittings that meet the needs of critical industries. Inconel 625 is well known for its outstanding strength and corrosion resistance, making these tube fittings ideal for applications where safety, durability, and reliability are essential.

Inconel 625 Female Adapter Manufacturer in Doha, Alloy 625 Hydraulic Tube Fittings, Inconel 625 Female Branch Tee Exporter in Al Rayyan, Inconel 625 Bulkhead Female Connector Supplier in Al Wakrah, Inconel 625 Female Run Tee Supplier in Al Khor, Inconel 625 Positionable Male Run Tee In Al Wakrah, Inconel 625 Tube Fittings In Al Khor, Inconel 625 Male Branch Tee Price List in Al Shahaniya, Alloy 625 Tube Fittings Manufacturer in Doha, Inconel 625 Reducer Union Exporter in Al Rayyan, Qatar.

Inconel 625 Tube Fittings are made from a nickel-chromium-molybdenum alloy with additions of niobium, providing excellent resistance to corrosion and oxidation. This composition offers superior strength without the need for heat treatment. Mechanically, Inconel 625 provides high tensile and yield strength, excellent fatigue and creep resistance, and toughness across a wide temperature range. It maintains structural integrity under high pressure and thermal stress, ensuring secure connections and consistent performance in harsh and aggressive environments.

Inconel 625 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6010 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Inconel 625 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Inconel 625 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

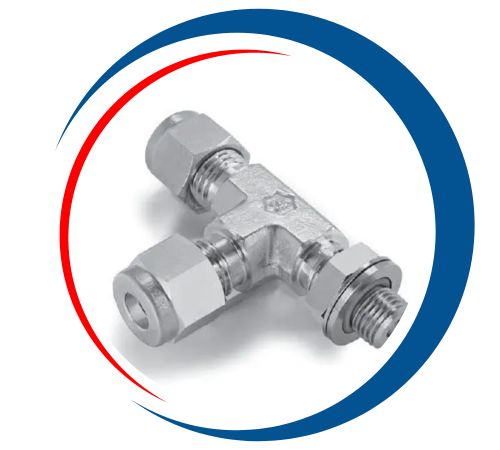

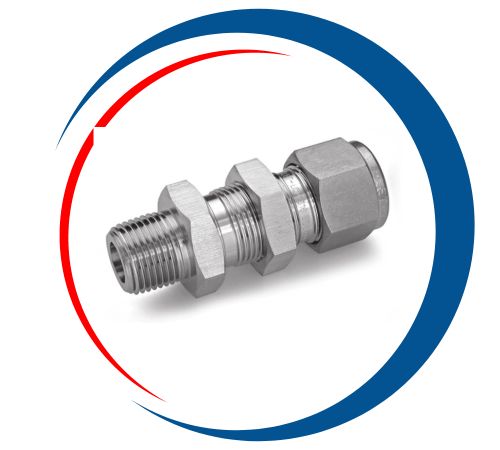

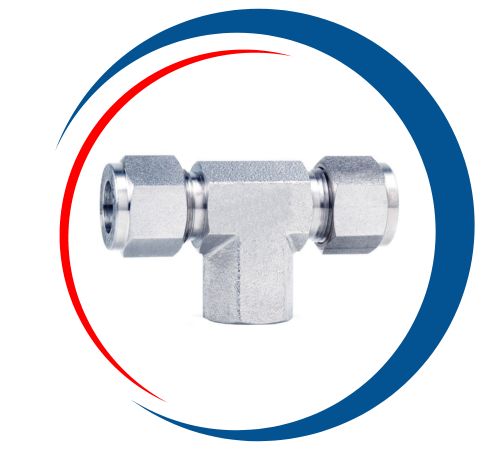

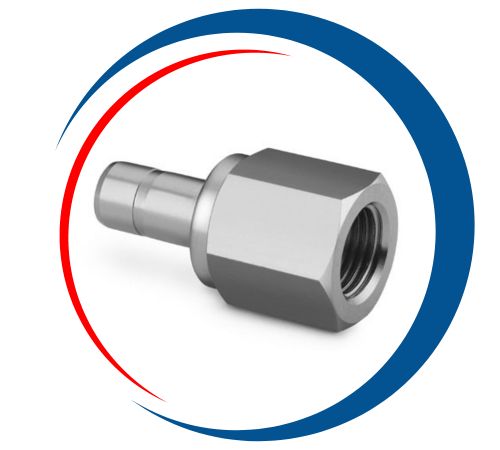

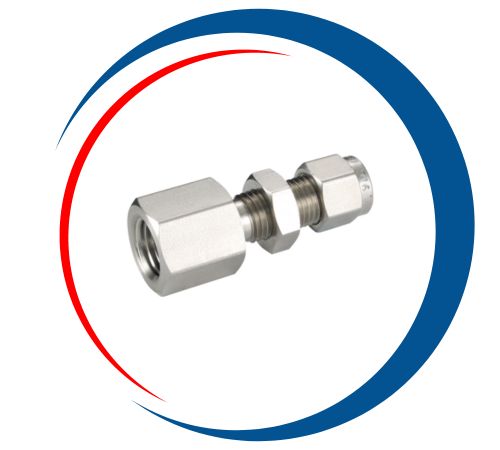

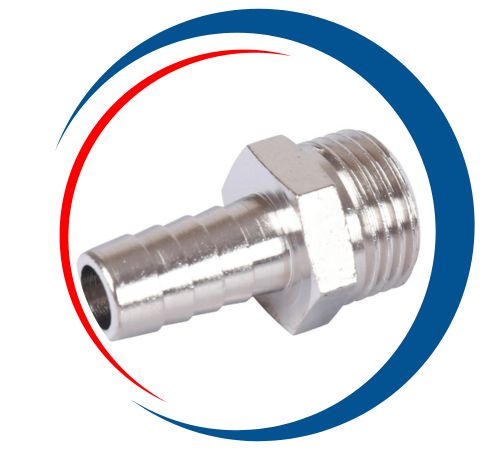

Types of Inconel 625 Tube Fittings

Inconel 625 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Inconel 625	N06625	2.4856	NC22DNB4M	NiCr22Mo9Nb	NCF 625	NA 21	ХН75МБТЮ	ЭИ602

Inconel 625 Instrumentation Tube Fittings Price in Doha, Inconel 625 Male Branch Tee Supplier in Al Rayyan, Inconel 625 Bulk Head Female Connector Manufacturer in Al Wakrah, Inconel 625 Single Ferrule Tube Fittings Price in Al Khor, Inconel 625 Male Run Tee Supplier And Manufacturer in Al Shahaniya, Inconel 625 Male Elbow In Doha, Qatar.

Largest Manufacturer and Supplier of Inconel 625 Tube Fittings in Doha, Qatar

Top Inconel 625 Tube Fittings Manufacturing Company in Doha At Jassem Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Inconel 625 Tube Fittings in Doha, Qatar. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Qatar, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel 625 Tube Fittings Uses

Inconel 625 Tube Fittings supplied by Jassem Tube Fittings are widely used in oil and gas, petrochemical, chemical processing, and power generation industries. They are ideal for high-pressure and high-temperature systems handling corrosive media such as acids, seawater, and sour gases. These fittings are commonly used in offshore platforms, refineries, heat exchangers, and instrumentation lines where reliability is critical. Their excellent corrosion resistance, mechanical strength, and leak-proof performance make them suitable for demanding applications requiring long-term safety and dependable operation.
