Incoloy 825 Tube Fittings

Home > Incoloy > Incoloy 825 Tube Fittings

Jassem Tube Fittings is a reputable manufacturer and supplier of high-performance tubing components, based in Doha, Qatar. The company caters to essential industries such as oil and gas, petrochemical, chemical processing, and power generation. The Incoloy 825 Tube Fittings offered by Jassem Tube Fittings are designed to deliver outstanding corrosion resistance, strength, and reliability in challenging environments. Crafted with advanced production methods and rigorous quality control, these tube fittings guarantee leak-free connections, a long service life, and dependable performance even under high pressure and fluctuating temperatures.

Incoloy 825 Instrumentation Tube Fittings Supplier in Doha, Incoloy 825 Double Ferrule Tube Fittings Price List in Al Rayyan, Nickel Alloy Twin Ferrule Fittings Manufacturer in Al Wakrah, Incoloy 825 Single Ferrule Fittings In Al Khor, Incoloy 825 Bulkhead Union, Incoloy 825 Ferrule Fittings Exporter in Al Rayyan, Incoloy 825 Instrumentation Fittings Manufacturer in Al Shahaniya, Incoloy 825 Compression Tube Fittings in Doha, Qatar.

Incoloy 825 Tube Fittings are made from a nickel-iron-chromium alloy that includes molybdenum, copper, and titanium. This unique blend gives them remarkable resistance to sulfuric and phosphoric acids, as well as protection against pitting and chloride stress corrosion cracking. On the mechanical side, the alloy boasts impressive tensile and yield strength, high ductility, and excellent toughness across a broad temperature range. It maintains its mechanical stability even at elevated temperatures, shows good fatigue resistance, and performs reliably in both oxidizing and reducing chemical environments.

Incoloy 825 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8250 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy 825 Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy 825	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Incoloy 825 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Incoloy 825 Tube Fittings

Incoloy 825 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 825	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

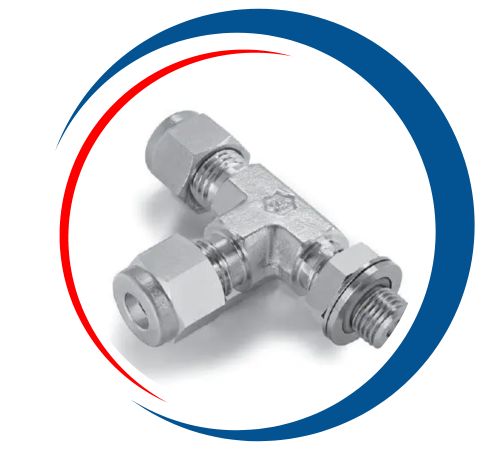

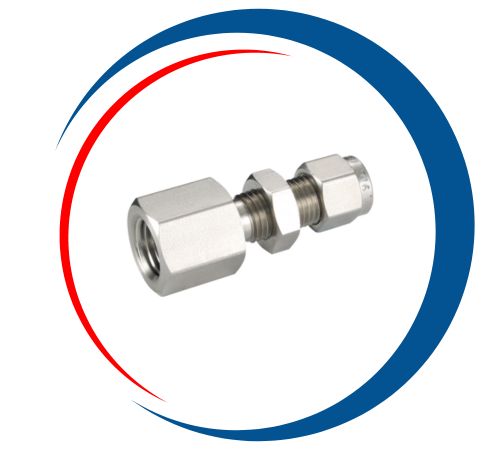

Incoloy 825 Bulkhead Union, Incoloy 825 Alloy Tube To Union, Incoloy 825 Instrumentation Tube Fittings Price in Doha, Incoloy 825 Male Branch Tee Supplier in Al Rayyan, Incoloy 825 Bulk Head Female Connector Manufacturer in Al Wakrah, Incoloy 825 Single Ferrule Tube Fittings Price in Al Khor, Incoloy 825 Male Run Tee Supplier And Manufacturer in Al Shahaniya, Incoloy 825 Male Elbow In Doha, Qatar.

Largest Manufacturer and Supplier of Incoloy 825 Tube Fittings in Doha, Qatar

At Jassem Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 825 Tube Fittings in Doha, Qatar. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Qatar, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 825 Tube Fittings Uses

Incoloy 825 Tube Fittings are extensively utilized in industries that demand exceptional resistance to corrosion and chemical exposure. You’ll find them in oil and gas production, petrochemical facilities, chemical processing units, power generation plants, and offshore installations. These fittings are perfect for applications in heat exchangers, acid handling systems, hydraulic and instrumentation tubing, and process piping lines. Their durability, leak-proof performance, and ability to withstand harsh operating conditions make them an excellent choice for a variety of demanding environments.
