Incoloy 800 Tube Fittings

Home > Incoloy > Incoloy 800 Tube Fittings

Jassem Tube Fittings is a trusted manufacturer and supplier of top-notch tubing and piping components, located in Doha, Qatar. The company plays a vital role in key sectors like oil and gas, petrochemicals, power generation, and marine engineering by providing precision-engineered solutions. Their Incoloy 800 Tube Fittings are crafted to deliver reliable performance in high-temperature and high-pressure settings. Adhering to international standards and rigorous quality control measures, these fittings boast impressive strength, oxidation resistance, secure connections, and a long lifespan, making them perfect for demanding industrial applications.

Incoloy 800 Instrumentation Tube Fittings Supplier in Doha, Incoloy 800 Double Ferrule Tube Fittings Price List in Al Rayyan, Nickel Alloy Twin Ferrule Fittings Manufacturer in Al Wakrah, Incoloy 800 Single Ferrule Fittings In Al Khor, Incoloy 800 Bulkhead Union, Incoloy 800 Ferrule Fittings Exporter in Al Rayyan, Incoloy 800 Instrumentation Fittings Manufacturer in Al Shahaniya, Incoloy 800 Compression Tube Fittings in Doha, Qatar.

Incoloy 800 Tube Fittings are made from a nickel-iron-chromium alloy that contains about 30–35% nickel, 19–23% chromium, and the rest iron. This unique blend gives them outstanding resistance to oxidation, carburization, and high-temperature corrosion. On the mechanical side, the alloy offers good tensile and yield strength, high ductility, and excellent resistance to creep and rupture at elevated temperatures. It maintains its structural integrity under thermal stress, exhibits good fatigue resistance, and performs reliably in both oxidizing and mildly reducing environments.

Incoloy 800 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy 800 Tube Fittings Chemical Composition

Grade	Ni	Fe	Cr	Cu	Ti	Al	C	Mn	S	Si
Incoloy 800	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.1 max	1.5 max	.015 max	1.0 max

Incoloy 800 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1350-1400 ℃	Psi – 75,000 , MPa -520	Psi – 30,000 , MPa – 205	30 – 35 %

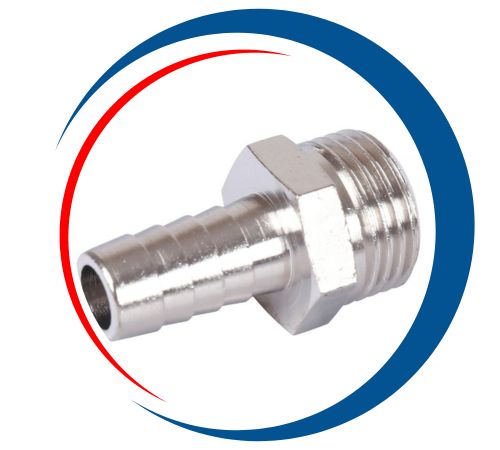

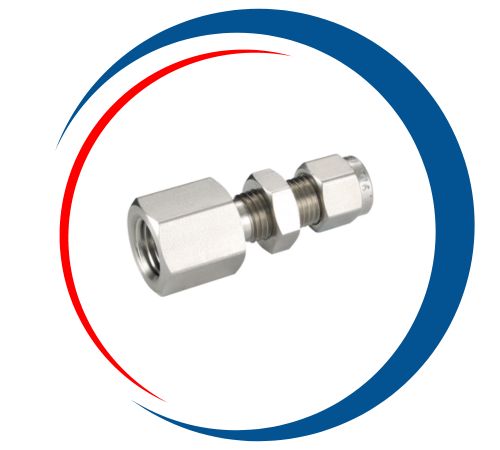

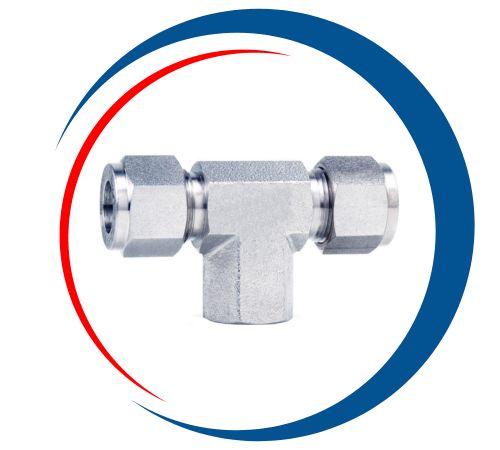

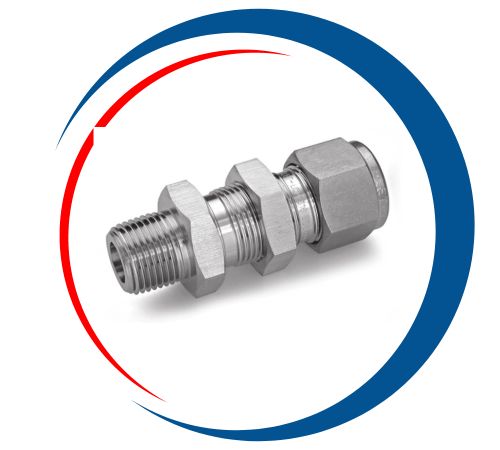

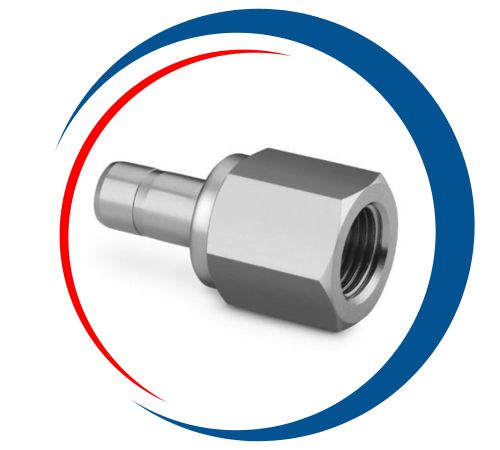

Types of Incoloy 800 Tube Fittings

Incoloy 800 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 800	N08800	1.4876	Z8NC32-21	X10NiCrAlTi32-20	NCF 800	NA 15	ЭИ670	XH32T

Incoloy 800 Bulkhead Union, Incoloy 800 Alloy Tube To Union, Incoloy 800 Instrumentation Tube Fittings Price in Doha, Incoloy 800 Male Branch Tee Supplier in Al Rayyan, Incoloy 800 Bulk Head Female Connector Manufacturer in Al Wakrah, Incoloy 800 Single Ferrule Tube Fittings Price in Al Khor, Incoloy 800 Male Run Tee Supplier And Manufacturer in Al Shahaniya, Incoloy 800 Male Elbow In Doha, Qatar.

Largest Manufacturer and Supplier of Incoloy 800 Tube Fittings in Doha, Qatar

At Jassem Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy 800 Tube Fittings in Doha, Qatar. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Qatar, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 800 Tube Fittings Uses

Incoloy 800 Tube Fittings are commonly used in situations that demand strength and stability at high temperatures. They find applications in industries such as oil and gas processing, petrochemical plants, power generation facilities, and chemical processing units. These fittings are perfect for heat exchangers, furnace components, steam piping systems, and high-temperature process lines. Additionally, they are utilized in nuclear power systems and thermal equipment. Their ability to resist oxidation, thermal fatigue, and long-term heat exposure makes them a go-to choice for many industrial applications.
